ID24

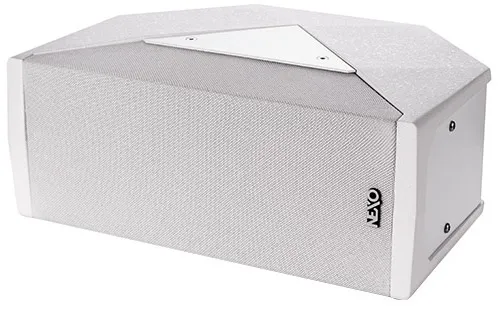

Spec’d for the installation professional and designed for the widest range of applications, ID24-I (install spec) features threaded holes for compatibility with NEXO and 3rd-party mounting hardware. For rapid installation ID24-I is equipped with captive cable for fast, secure connectivity with existing wiring. Install models are available in Black or White with a matching fabric grille.
KEY FEATURES
- Compact, high-powered sound reinforcement speaker
- Measures just 309mm W x 132mm H x 233mm D
- Rotatable horn for 60° x 60°, 90° x 40°, 120° x 40° or 120° x 60° (according to horns) HF coverage
- Dedicated Install version with captive cable connectivity

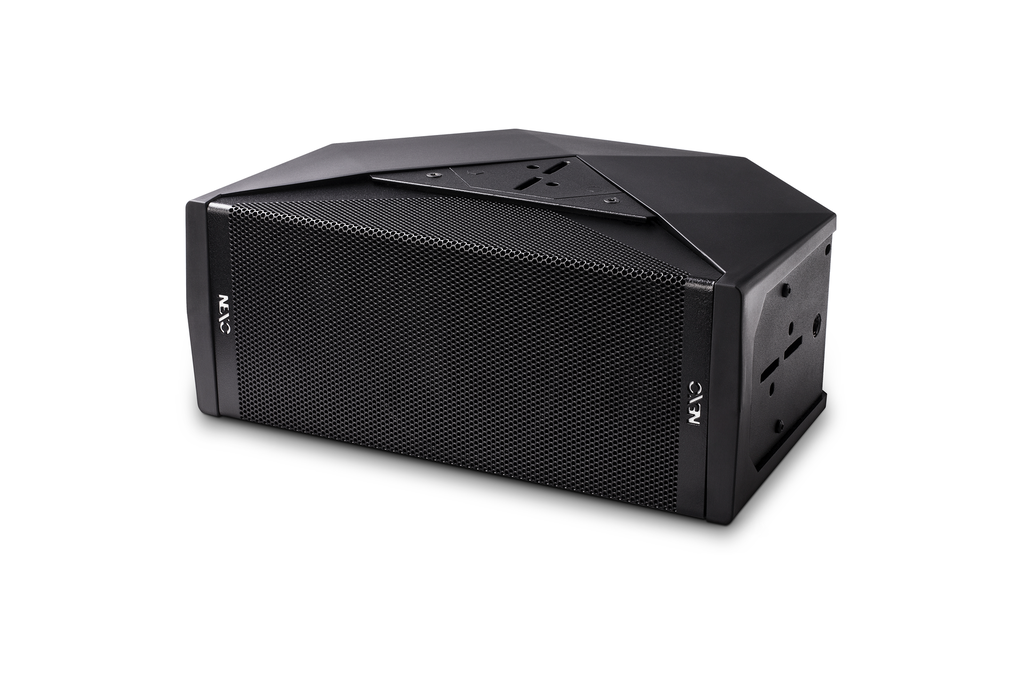

- Tour Version with Speakcon
- Install Version Available in black or white with cloth grille
- Threaded holes for compatibility with NEXO and other installation hardware
SPECIFICATIONS
Frequency Range 95Hz – 20kHz (+/- 6dB)
Sensitivity (1W / 1m) 100dB SPL Nominal
Peak SPL Level (1m) 126dB Peak
HF Dispersion Selection (according to horns) Selection of: 60°x60°, 90°x40°
120°x40°, 120°x60°
Nominal Impedance 16Ω
Recommended Amplification per box 200 to 500W
FEATURES
Components LF: 2x4" – Long excursion – Neodymium magnet
HF: 1" voice coil ½" throat – Neodymium magnet
Height x Width x Depth 132 x 309 x 233mm (5.2" x 12.2" x 9.2")
Weight 6 Kg (13 lbs)
Material Water-resistant Polyurethane
Finish White: Structural paint, Black: Raw sandblasted polyurethane
Grille Stainless steel, Acoustic fabric, black or white
Rigging 6x 6mm threaded inserts
