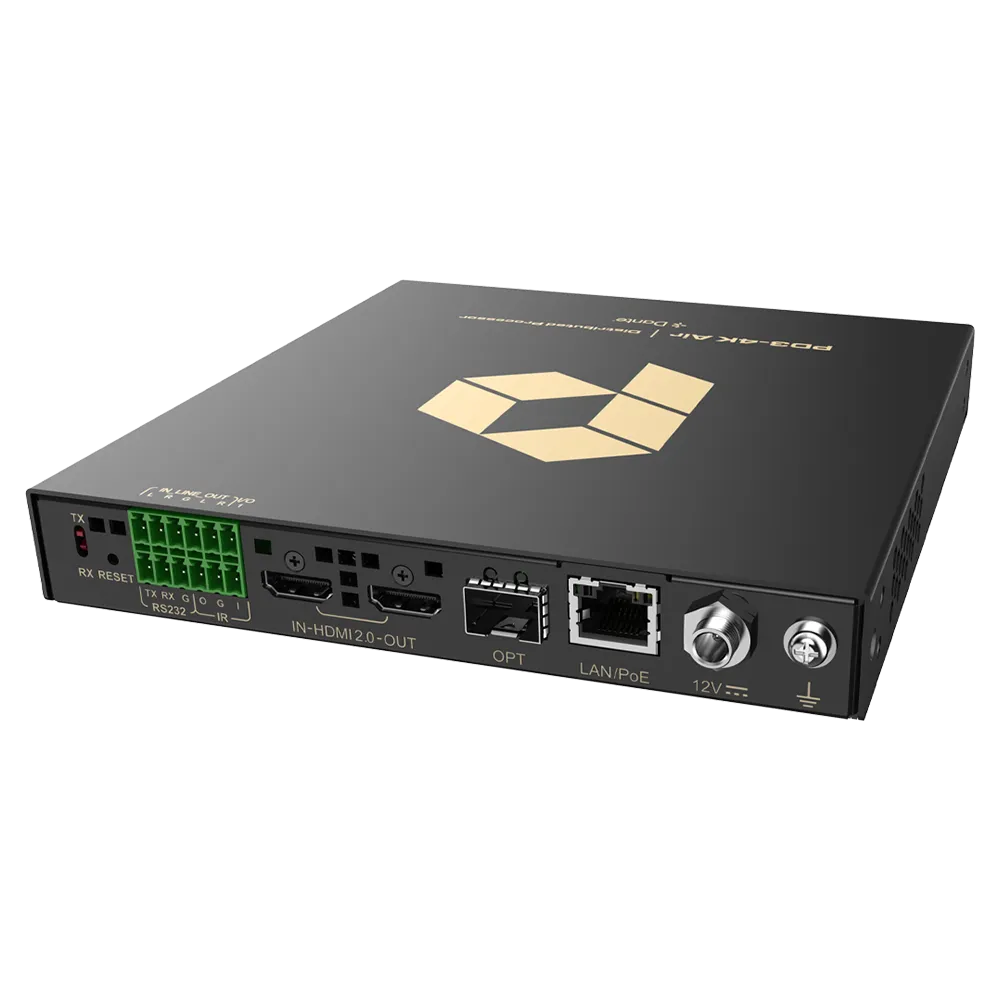

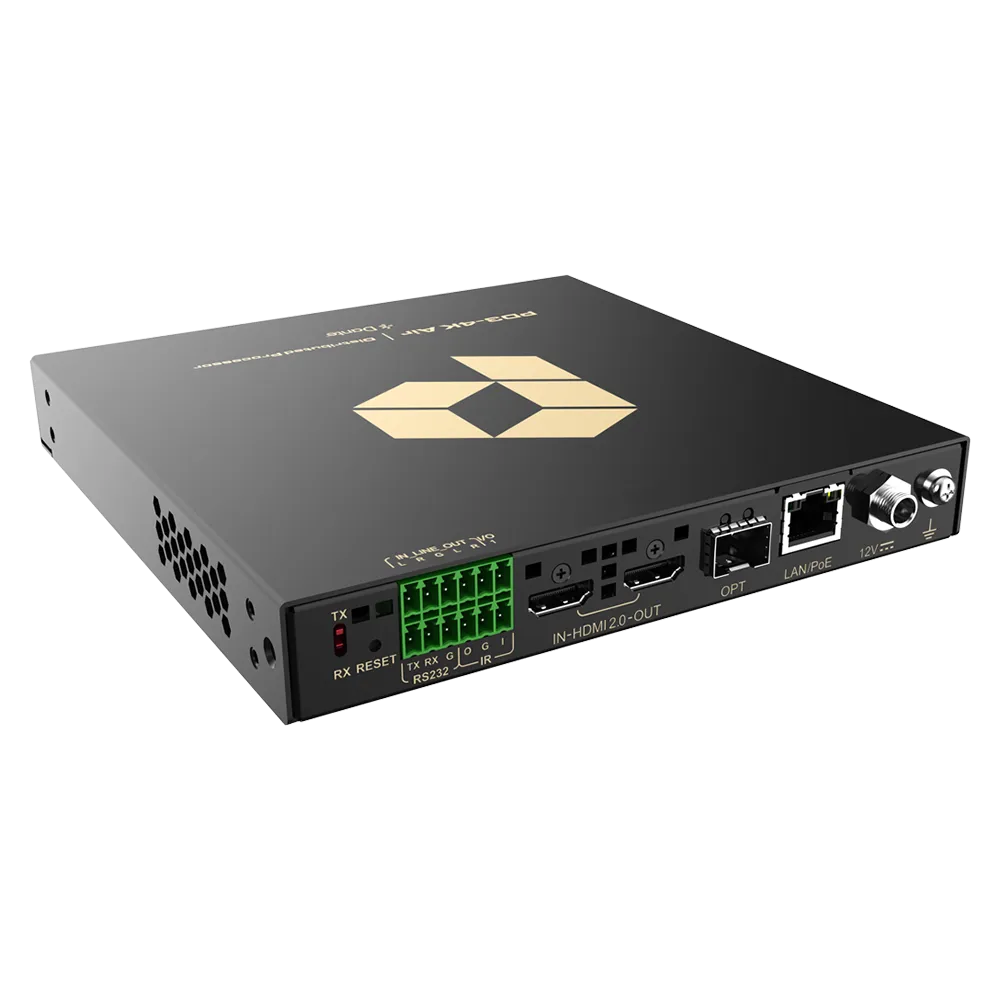

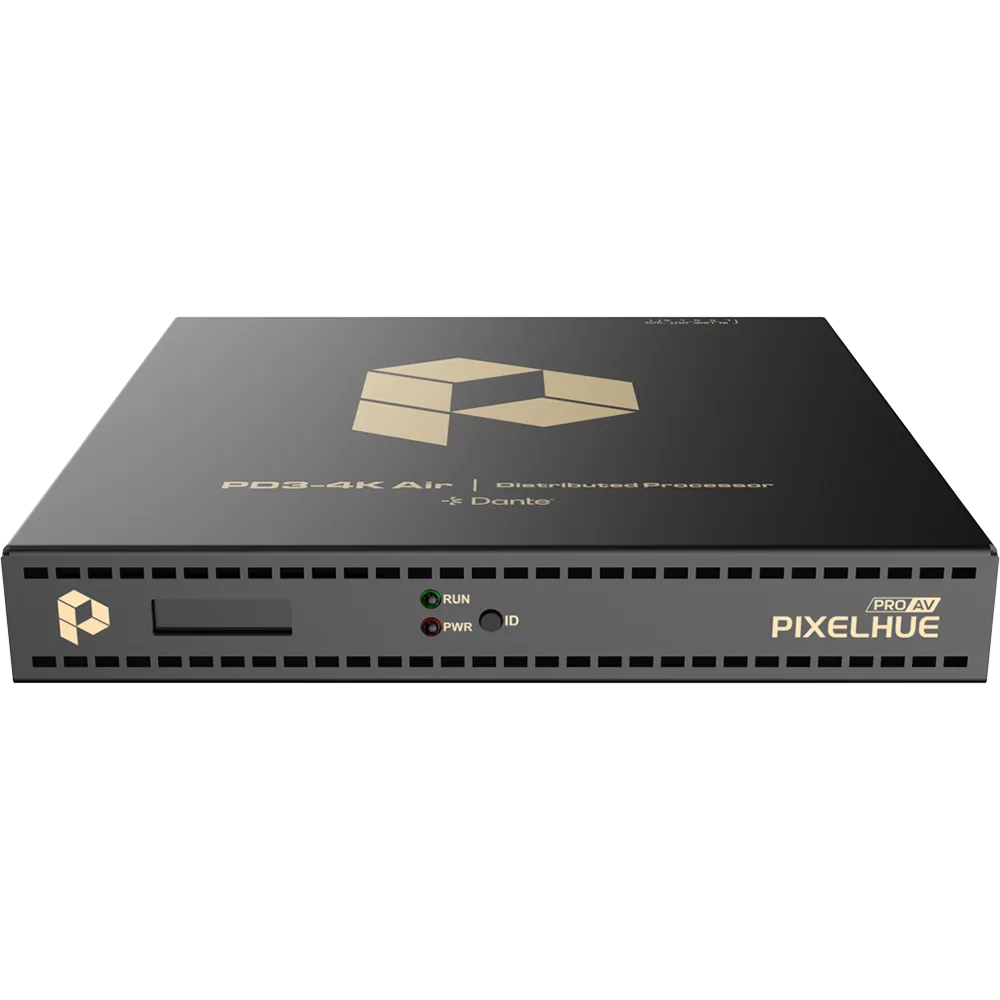

The PD3-4K Air AV over IP transceiver is a digitized distributed image processing and control system based on network and nodes. In the system, the encoding nodes collect multiple AV signal sources distributed across multiple locations and transcode them into IP streams, while the decoding nodes receive and display signals on screens, enabling seamless AV sharing over the network.
Supporting H.264/H.265 encoding, the PD3-4K Air delivers visually lossless 4K@60Hz 4:4:4 video with ultra-low latency and efficient bandwidth usage over standard 1G networks. The PD3-4K-DNT Air further supports Dante audio for professional synchronized audio transmission. Breaking the limitations of the traditional centralized deployment, the PD3-4K Air supports flexible distributed deployment across floors, zones, and networks.
With an ultra-compact design, the PD3-4K Air integrates 5K output, long-distance AV transmission, signal switching, screen management, and intelligent central control, making it well-suited for fixed indoor installations such as meeting rooms, hotels and modern educational facilities—where simplicity, reliability, and visual excellence matter most.
| Specification |
PD3-4K Air |
PD3-4K-DNT Air |
| Dante Audio |
Not supported |
Supported |
| AES67 |
Not supported |
Supported |
| Connectors |
Video input |
1× HDMI 2.0 IN |
| Video output |
1× HDMI 2.0 OUT |
| Transmission |
1× LAN/PoE, 1× OPT |
| Control |
1× RS232, 1× IR IN, 1× IR OUT, 1× I/O, 1× DIP switch, 1× RESET |
| Audio connectors |
1× Line In, 1× Line Out |
| Power |
Power connector |
DC 12V 5A, max power consumption: 16 W |
| PoE+ |
IEEE 802.3at on LAN/PoE port
42 to 57V, max consumption: 25.5 W |
| MTBF |
≥ 120,000 hours |
| Network |
1 GE
IPv4
Multicast IGMPv2/IGMP snoopingv2
RTP/RTCP over UDP |
| Network Bandwidth |
Unicast: up to 5 clients can pull the unicast stream from an encoder simultaneously
Multicast supported
Bit rate peak: 512 Kbps to 200 Mbps |
| Operating Environment |
Temperature |
0°C to 50°C |
| Humidity |
5% RH to 85% RH, non-condensing |
| Storage Environment |
Temperature |
–20°C to +70°C |
| Humidity |
5% RH to 95% RH, non-condensing |
| Physical Specifications |
Dimensions |
165.0 mm × 170.0 mm × 25.0 mm |
| Weight |
0.9 kg (net), 1.7 kg (gross) |
| Packing Information |
Accessories |
1× Silicone dustproof plug, 4× Foot pads, 1× Left mounting flange, 1× Right mounting flange, 6× M38 screws, 6× ST412 self-tapping screws, 1× HDMI cable, 2× Phoenix connectors, 1× Power adapter, 1× Power cord, 1× Certificate of Approval |
| Net weight |
0.9 kg |
| Gross weight |
1.7 kg |
| Packing box |
590.0 mm × 335.0 mm × 420.0 mm
Note: Each box contains up to 6 devices. |
