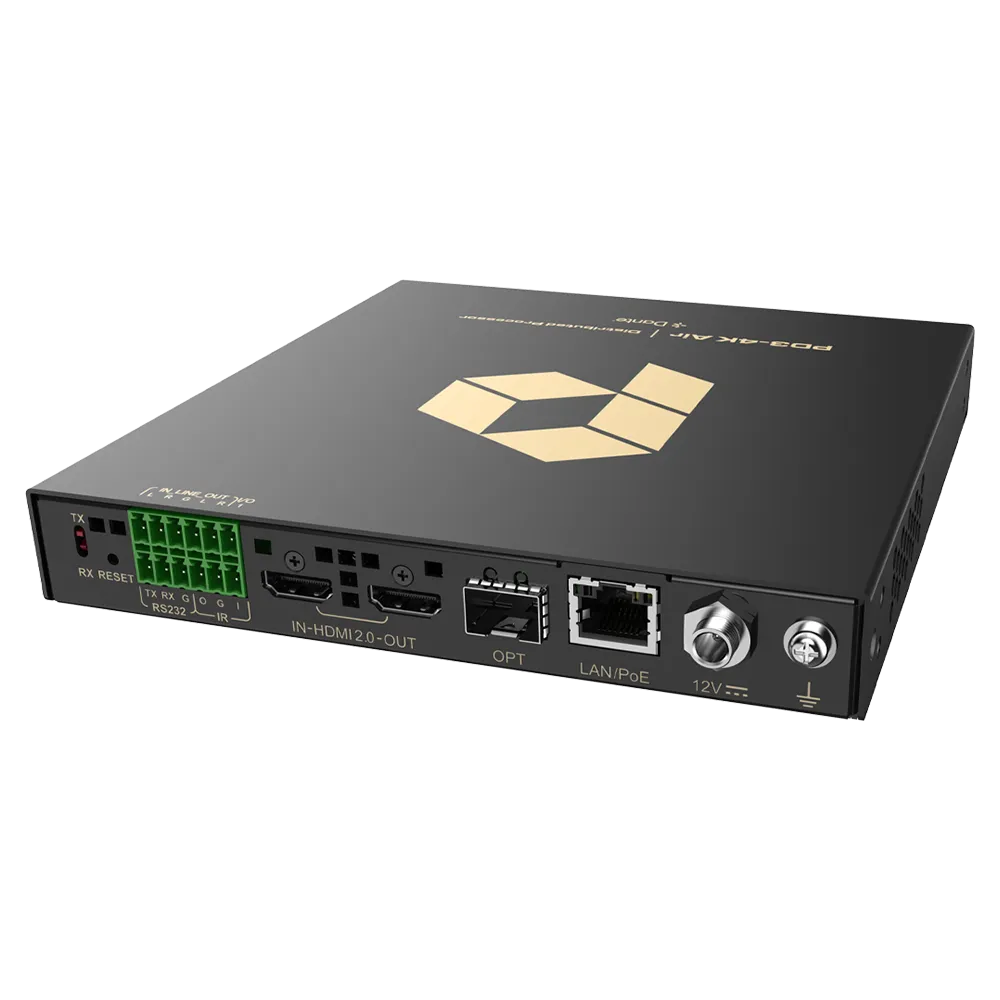

The Pixelhue PD3-4K Air brings 4K AV-over-IP in a fast, plug-and-play form — pair devices in seconds with a front-panel ID button, no complex configuration. It uses efficient H.264 / H.265 encoding and works together with the PD3-4K as one system. The Air is a single-layer, point-to-point transceiver; add PD3-4K units when you need multi-layer multiview. An optional Dante model (PD3-4K-DNT Air) adds networked audio.
Key Specifications
| Stream architecture | H.264 / H.265 encoding; unicast & multicast (up to 5 clients per stream) |
| Layer capacity | Single-layer, point-to-point (one source, full-screen) |
| Video I/O | 1 × HDMI 2.0 in / 1 × HDMI 2.0 out |
| Max resolution | In 4096 × 2160 @ 60 / Out up to 5120 × 2880 @ 60 |
| Latency | ≤ 2 frames (4:2:0) / ≤ 3 frames (4:4:4) |
| Pairing | Front-panel ID button + rear DIP-switch encoder / decoder mode |
| Audio | HDMI + Line In / Out (48 kHz); Dante on PD3-4K-DNT Air |
| Network / power | 1G RJ45 (PoE+) + 1G SFP; 16 W |
| Security & size | 802.1X, AES-128 / 256, HTTPS; 165 × 170 × 25 mm |
